Electric White Color four Number 0.56" 7 Segment LED digital Display module
* Features of four Number 0.56" 7 Segment LED Digital Display
1. Extreme short light response time, high brightness, low power.
2. Products are packaged in solid state and therefore are stable and have good air tightness.
3. Long life span, usually more than 50 thousands hours
4. For it is universal used, these products can save custom die cost
5. Environment friendly and energy saving.
6. Widely applied in set-top box, temperature controllers, Single ball machine,etc.
* Specifications of four Number 0.56" 7 Segment LED Digital Display
| Product Name | four number 0.56" 7 segment led display |
| Part NO. | KRS-5264AW-3.5 |
| Digit number | 24digit |
| Digit height | 0.56inch |
| Size | 25*19*8(mm) |
| Emitting color | White |
| Segment color | white |
| Face color | Black or gray |
| Polarity | Common anode |
| Dominant wavelength | 460nm |
| Luminous intensity | 160~260mcd |
| Forward voltage | 2.8~3.8V |
| Reverse voltage | 6V |
| Recommended current | 30mA |
| Operating temperature range | -20~+80℃ |
| Lead solder temperature | 260℃ for 3-5 seconds |
| Life span | Over 50000hours |
| Free Samples | supported |
| OEM&ODM | Support |
| LOGO printing | Support |
* Dimensions and Internal circuit of four Number 0.56" 7 Segment LED Digital Display:

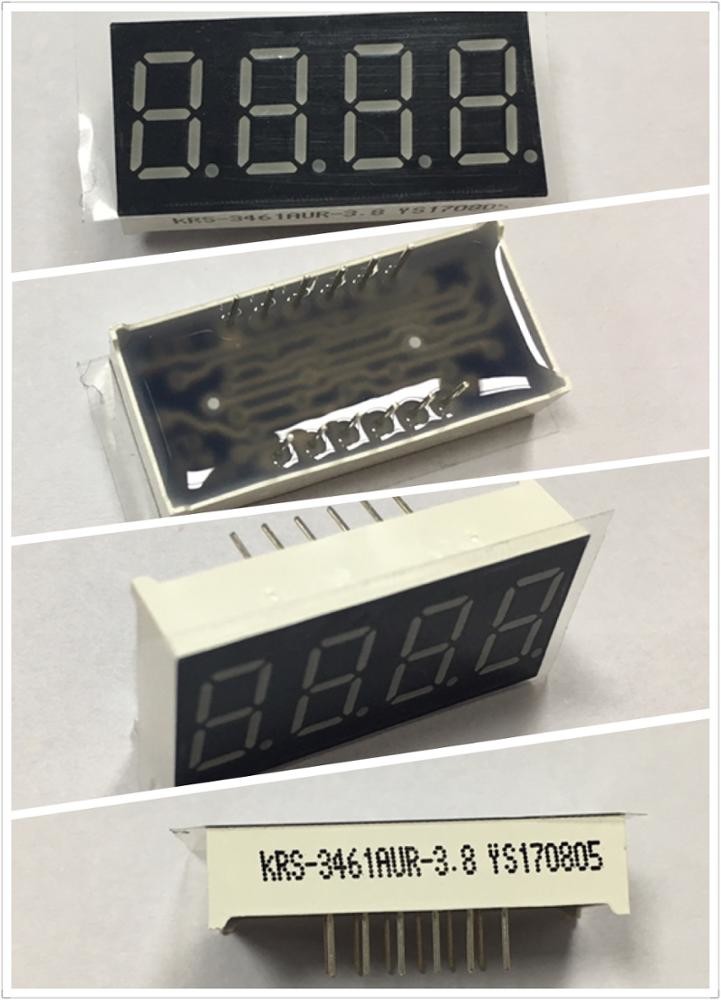

* Products show:
* Other related products:( if any you need, feel free to contact me.)
* Applications:
Widely applied in Temperature Controllers; Test and measurement instruments; Power converters; Home appliance displays;
Automotive and avionic instrumentation; Fuel pump displays; Digital panel meters; Set-top boxes; Electronics displays;
Gaming machines; Point of sale terminals; Answering machines; Exercise equipments, etc.
* Advantages:
1. We can supply you all kinds of 7 segment LED display:
--- Digit size: from 0.25" to 16"
--- Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment as well as customized are available
3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color
