0.28'' 7mm Digit Common Cathode / Anode SMD LED 7 Segment Display

Shenzhen Kerun Optoelectronics Inc.
Contact Now
    Buy cheap 0.28'' 7mm Digit Common Cathode / Anode SMD LED 7 Segment Display from wholesalers

    Buy cheap 0.28'' 7mm Digit Common Cathode / Anode SMD LED 7 Segment Display from wholesalers
    • Buy cheap 0.28'' 7mm Digit Common Cathode / Anode SMD LED 7 Segment Display from wholesalers
    • Buy cheap 0.28'' 7mm Digit Common Cathode / Anode SMD LED 7 Segment Display from wholesalers

    0.28'' 7mm Digit Common Cathode / Anode SMD LED 7 Segment Display

    Ask Lasest Price
    Brand Name : KeRun
    Model Number : KRS-SS2811CW
    Certification : ROHS,SGS,REACH
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 10000pcs/day
    Delivery Time : 20-25 working days, can negotiate based on order quantity
    • Product Details
    • Company Profile

    0.28'' 7mm Digit Common Cathode / Anode SMD LED 7 Segment Display

    0.28'' 7mm Digit Common Cathode or Anode SMD Led 7 Segment Display


    Features:

    High intensity and reliability

    High quality, low power requirement

    IC compatible, easy assembly


    Product name
    LED DIGIT DISPLAY
    Digit height
    0.28" (7mm)

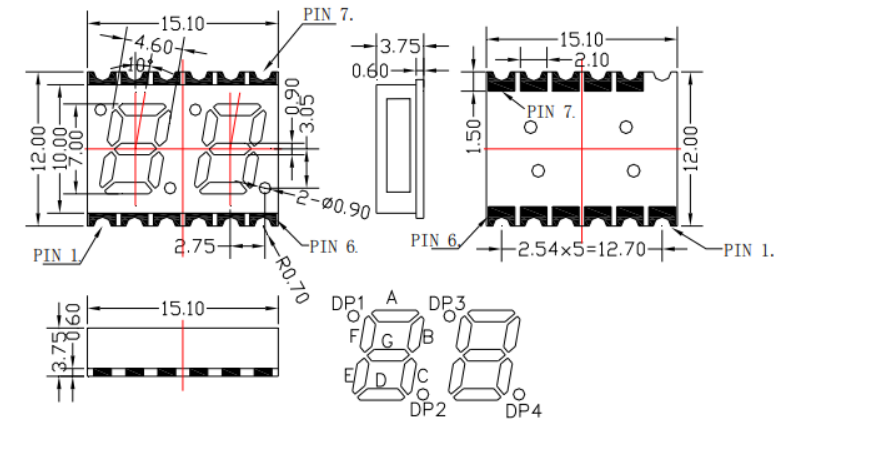

    Dimension
    L (15.1mm)*W(12mm)*H(3.75mm)
    Color
    Red/Green/Blue/Yellow/White,etc
    Face Color
    Black or Gray


    Color:

    Led colorBlueGreenYellow-GreenYellowAmberOrangeRedWhite
    Wave length(nm)465-475515-525565-575585-595600-610620-630635-650/
    Led chipGaNGaPGaPGaAsPGaAsPGaAsPAlInGaPGaN+Phosphor

    Absolute Max Rating (25℃, take yellow-green led as sample):

    SymbolParameterValueUnit
    PADPower Dissipation per segment60mW
    VRReverse Volrage per segment5V
    IAFContinuous Forward Current per segment25mA
    IPFPeak Forward Vurrent per segment (Duty-0.1, 1KHz)80mA
    /Derating Linear from 25℃ per segment0.33mA/℃
    ToprOperating Temperature Range-35~+85
    TstgStorage Temperature Range-35~+85


    Our service:

    • Quick respond:Your inquiry sill be replied within 24 hours by our professional foreign trade specialists.
    • Quality Service: Providing OEM and ODM services with more than 10 years experience in LED field.
    • Full products range: We provide all series of LED display from size 0.25" to 10", sytles like 7 segment, 14 segment, 16 segment, dot matrix and customized style. Full colors are avaliable.
    • Sufficient capacity: We have sufficient production capacity that we can deliver products within 7-15 days (according to the complexity of the display) after your payment.
