0.56 Inch Common Anode Seven Segment Display LED Energy Saving
Common Anode 0.56 Inch 7 Segment LED Numerical Display For
Instrument Panels
Product features
1. Extreme short light response time, high brightness, low power,
environment friendly and energy saving.
2. Can be driven by low voltage and low current.
3. It is easy to drive and control and therefore is applied widely.
4. Products are packaged in solid state and therefore are stable
and have good air tightness.
5. Long life span, usually more than 50 thousands hours
6. For it is universal used, these products can save custom die
cost
7. Products displaying different colors could be produced according
to customers’ requirements.
| GENERAL INFORMATION | ||||||||||||||||||||||||||||||

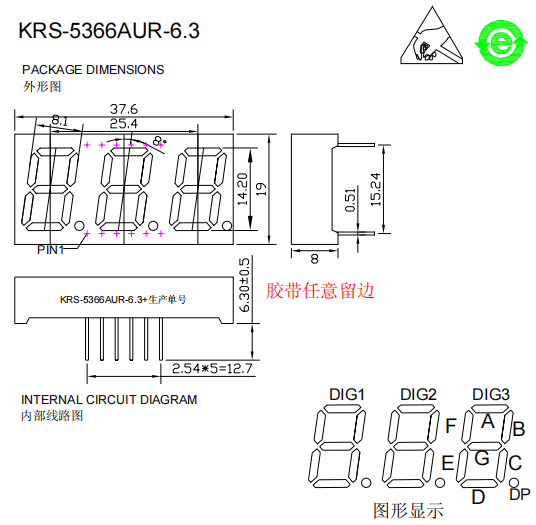

| Part NO. | Chip Material | Emitting Color | Lens Type | Description | ||||||||||||||||||||||||||
| KRS-5366AUR-6.3 | AIGaInP | Red | diffuse | Common Anode | ||||||||||||||||||||||||||
| Electrical/Optical Characteristics at Ta=25°C | ||||||||||||||||||||||||||||||
| Parameter | Symbol | Red | Unit | Conditions | ||||||||||||||||||||||||||
| MIN. | Typ. | Max. | ||||||||||||||||||||||||||||
| Luminous lntensity | lv | 100 |  | 140 | mcd | IF=20mA | ||||||||||||||||||||||||
| Peak Wavelength | λp |  |  |  | nm | IF=20mA | ||||||||||||||||||||||||
| Dominant Wavelength | λD | 620 | 640 | nm | IF=20mA | |||||||||||||||||||||||||
| Spectral Line Half-Width | Δλ |  | 30 | nm | IF=20mA | |||||||||||||||||||||||||
| Forward Voltage | VF | 1.6 | 2.5 | V | IF=20mA | |||||||||||||||||||||||||
| Reverse Current | IR | -- | -- | 30 | uA | VR=6V | ||||||||||||||||||||||||
| Absolute Maximum Ratings at Ta=25°C | ||||||||||||||||||||||||||||||
| Parameter | Symbol | Maximum Rating | Unit | |||||||||||||||||||||||||||
| Power Dissipation | Pd | 50 | mW | |||||||||||||||||||||||||||
| Forward Current | IF | 20 | mA | |||||||||||||||||||||||||||
| Peak Forward Current(1) | IF(Peak) | 80 | mA | |||||||||||||||||||||||||||
| Reverse Voltage | VR | 6 | V | |||||||||||||||||||||||||||
| Operating Temperature | Topr | -20°c~80°c | ||||||||||||||||||||||||||||
| Storage Temperature | Tstg | -20°c~80°c RH:25%~65% | ||||||||||||||||||||||||||||
| Lead Solder Temperature(2) | Tsol | 260°c for 3-5 seconds | ||||||||||||||||||||||||||||
| Notes: 1. 1/10 duty cycle, 0.1ms pulse width. 2. 2mm below package base. | ||||||||||||||||||||||||||||||
Application
-- Audio Equipment or instrument panels;
-- General using for digital indicators;
-- Multimedia products;
-- Bank exchange rate display;
-- LED clock display;
-- Display for gas station and other various display areas of
equipment/machine.
|
|
