| Brand Name : | KERUN |

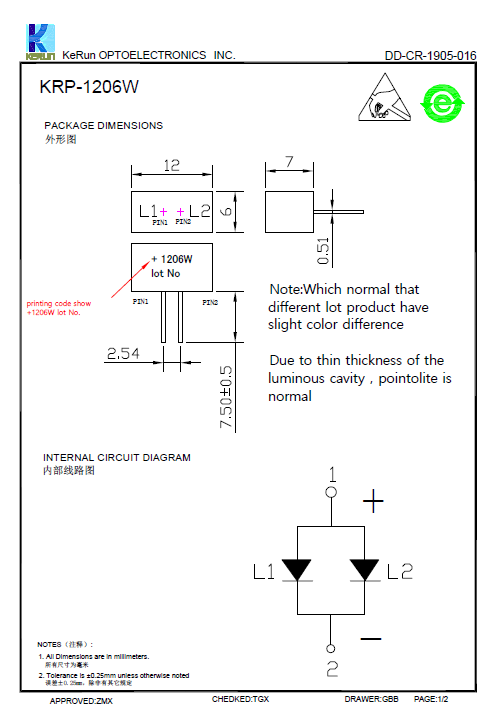

| Model Number : | KRP-1206W |
| Certification : | RoHS/REACH/MSDS |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000pcs per day |
| Delivery Time : | 20~25 work days |
Electrical/Optical Characteristics at Ta=25℃ | ||||||
Parameter | Symbol | Min | Typ | Max | Unit | Condition |
Luminous intensity | Iv | 18 | 19 | 20 | mcd | If=20 mA |
Peak Wavelength | λP | - | - | - | nm | If=20 mA |
Chroma Coordinate | X | 0.24 | 0.28 | 0.34 | nm | If=20 mA |
Y | 0.22 | 0.26 | 0.33 | nm | If=20 mA | |
Forward Voltage | VF | 2.8 | 2.9 | 3.2 | V | If=20 mA |
Reverse Current | IR | - | - | 10 | μA | VR=6 V |
Absolute Maximum Ratings at Ta= 25℃ | |||
Parameter | symbol | Maximum rating | unit |
Power Dissipation | Pd | 60 | mW |
Forward Current | IF | 20 | mA |
Peak Forward Current | IF(Peak) | 80 | mA |
Reverse Voltage | VR | 5 | V |
Operating Temperature | Topr | -40℃ +80℃ |
|
Storage Temperature | Tstg | -40℃ +80℃,RH:25%~65%, within 3 months |
|
Lead Solder Temperature | Tsol | 260℃ for 5 seconds |
|
All kinds off household appliances, Such As Aircondition,Refrigerator,Washing Machine.
|
|
