| Brand Name : | KERUN |
| Model Number : | KRS-5264AW-3 |
| Certification : | REACH ROHS |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 200K/30days |
| Delivery Time : | 25-35days |

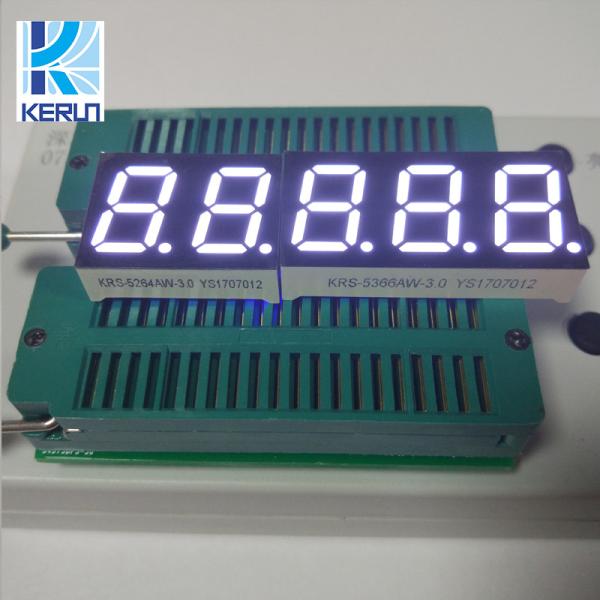

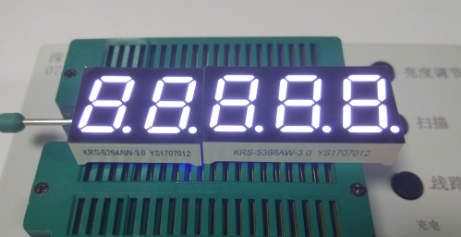

Super White 0.56 Inch Two Digit Seven Segment Display For Treadmill
Super White 0.56" 2 Digit 7 Segment Led Display for Treadmill
Digital height: 0.56inch(14.2mm)
Packing size: 19.86x12.8 mm
Polarity: CC/CA
Made with white segments and black surface
Colors: red, blue, green, amber, orange, white and yellow
Advantages:
High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 1.8 | 2.5 | V | |
| Reverse Voltage(Per dice) | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty(Per dice) | Iv | If=20mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 622 | 625 | nm | |
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃ | ||||||
|
|
