| Brand Name : | KERUN |
| Model Number : | KRM-R2388AUGPG13 |
| Certification : | RoHS/REACH/MSDS |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 20000pcs/day |
| Delivery Time : | 20~25 work days |

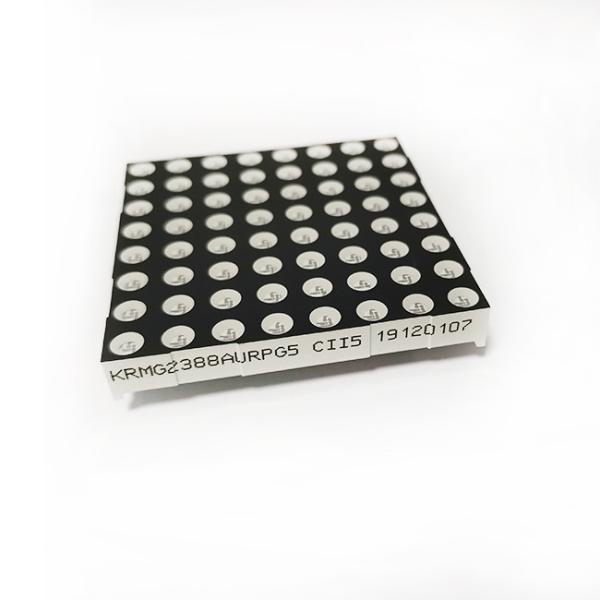

2.3 Inch 7.62mm 8x8 LED Dot Matrix Display Red Green Yellow Color
2.3inch pitch 7.62mm LED ultra red and green bicolor dot matrix module with 8x8 dot
| Part No | Chip Material | Luminous color | Lens Type | Description |
| KRM-R2388AURPG13/C | AIGaInP | Red | Water Clear | Common Anode |
| GaN | Pure green |
| Parameter | Symbol | Red | Pure green | Unit | Condition | ||||
| Min | Typ | Max | Min | Typ | Max | ||||
| Luminous lntensity | Iv | 100 | -- | 160 | 200 | -- | 320 | mcd | If=20 mA |
| Peak Wavelength | λP | -- | -- | -- | -- | -- | -- | nm | If=20 mA |
| Dominant Wavelength | λd | 620 | -- | 625 | 525 | -- | 530 | nm | If=20 mA |
| Spectral Line Half-Width | △λ | -- | 30 | -- | -- | 30 | -- | nm | If=20 mA |
| Forward Voltage | VF | 1.6 | -- | 2.5 | 2.8 | -- | 3.6 | V | If=20 mA |
| Reverse Current | IR | - | - | 30 | -- | -- | 30 | μV | VR=6 V |
| Parameter | symbol | Maximum rating | unit |
| Power Dissipation | Pd | 50 | mW |
| 70 | |||
| Forward Current | IF | 20 | mA |
| Peak Forward Current | IF(Peak) | 100 | mA |
| 100 | |||
| Reverse Voltage | VR | 6 | V |
| Operating Temperature | Topr | -40℃ +80℃ | |
| Storage Temperature | Tstg | -40℃ +80℃,RH:25%~65%, within 3 months | |
| Lead Solder Temperature | Tsol | 260℃ for 5 seconds |

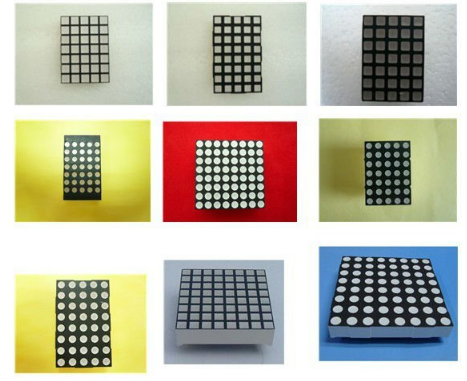

Dot size: Φ2.1, Φ2.97, Φ3.0,Φ3.7, Φ4.8, Φ5.0,Φ7.62, Φ10
Dot array: 5 x 8, 5 x 7, 8 x 8
Display size: 23.4*37.4mm, 25.19*42.79mm, 32*32mm, 37.7*37.7mm,38.1*53.3mm, 47.8*47.8mm, 48*48mm, 50.7*50.7mm, 60.5*60.5mm (0.7 inch, 1.3 inch, 1.5 inch, 1.9 inch, 2.3 inch, 5.1 inch )
Color: red, green, yellow, blue, orange, amber, yellow green, white, bi-color, tri-color, full color
Pitch: 2.5mm, 4.0mm, 4.6mm, 4.7mm, 4.75mm, 6.0mm, 6.35mm, 7.62mm
Surface: white, black or gray surface
Face Point Color: Gray or black
Polarity: Common Anode/Cathode
Features:
· Viewable up to 12 meters
· X-Y stackable
· Industry standard pin out, dual in line (DIP) leads on 2.54mm (0.1 in.) centers
· Low forward voltage
· Low power consumption
· High luminous intensity output
· Categorized for luminous intensity
· High efficiency
· Uniform brightness
· Easy mounting on printed circuit board and sockets
· IC compatible
· Good display and wide visual angle
· Rohs and Reach compliant
|
|
