| Brand Name : | KERUN |
| Model Number : | KRM-13881AB |
| Certification : | RoHS/REACH/MSDS |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 20000pcs/day |
| Delivery Time : | 20~25 work days |

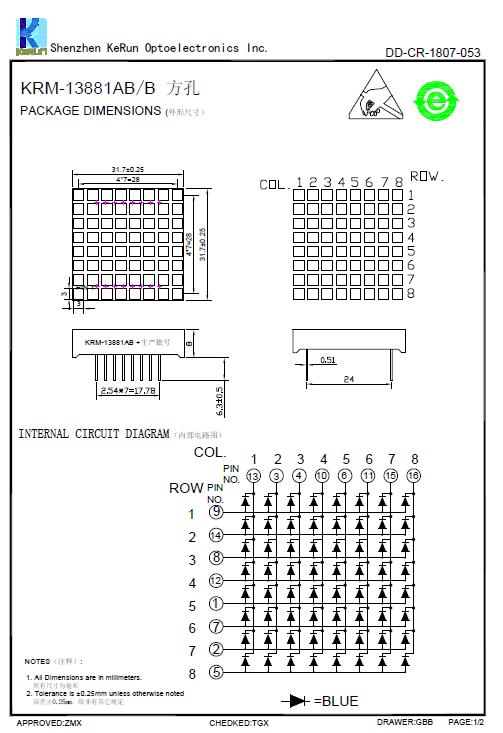

1.3 Inch Square 4mm Dot Matrix LED Display Module 8X8 Blue Color
1.3inch square dot pitch 4mm blue color SMD LED dot matrix 8*8 module Specification details
Features:
· Viewable up to 12 meters
· X-Y stackable
· Industry standard pin out, dual in line (DIP) leads on 2.54mm (0.1 in.) centers
· Low forward voltage
· Low power consumption
· High luminous intensity output
· Categorized for luminous intensity
· High efficiency
· Uniform brightness
· Easy mounting on printed circuit board and sockets
· IC compatible
· Good display and wide visual angle
· Rohs and Reach compliant
Part No | Chip Material | Luminous color | Lens Type | Description |
KRM-13881AB | InGaN | Blue | Diffuse | Common Anode |
Parameter | Symbol | Blue | Unit | Condition | ||
Min | Typ | Max | ||||
Luminous lntensity | Iv | 180 | -- | 260 | mcd | If=20 mA |
Peak Wavelength | λP | - | - | - | nm | If=20 mA |
Chrom Coordinate | X | -- | -- | -- | ||
Y | -- | -- | -- | |||
Dominant Wavelength | λd | 460 | -- | 465 | nm | If=20 mA |
Spectral Line Half-Width | △λ | 30 | 30 | 30 | nm | If=20 mA |
Forward Voltage | VF | 2.8 | 3.0 | 3.6 | V | If=20 mA |
Reverse Current | IR | - | - | 30 | μV | VR=6 V |
Parameter | symbol | Maximum rating | unit |
Power Dissipation | Pd | 70 | mW |
Forward Current | IF | 20 | mA |
Peak Forward Current | IF(Peak) | 80 | mA |
Reverse Voltage | VR | 6 | V |
Operating Temperature | Topr | -40℃ +80℃ | |
Storage Temperature | Tstg | -40℃ +80℃,RH:25%~65%, within 3 months | |
Lead Solder Temperature | Tsol | 260℃ for 5 seconds |
|
|
